15ms latency Long Range 30km Drone Video Transmitter With High Sensitivity -100dbm@4Mhz

Product Categories
Hong Kong IFly Electronics Co., Limited
Contact Now

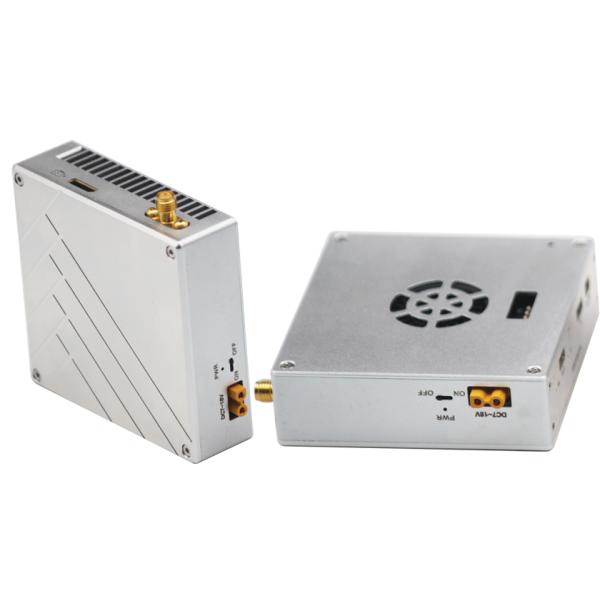

15ms latency Long Range 30km Drone Video Transmitter With High Sensitivity -100dbm@4Mhz

  • 1
  • 2

Brand Name : IFLY

Model Number : FIM-2430

Certification : CE

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 150sets/month

Delivery Time : 3-5working days

Packaging Details : 1set/box

Data : TTL Bi-directiona

Baud Rate : 115200bps

Serial Port : 2*Serial Port

Video Input : HDMI&IP

Antenna : SMA Omni antenna

Antenna gain : 12dbi

Tx Antenna : 5dbi Omni

Frequency : 2.402-2.478Ghz

Contact Now

15ms latency Long Range 30km Drone Video Transmitter With High Sensitivity -100dbm@4Mhz

Description


FIM-2430 is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (h.264) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 30km) and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, baud rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this IFLY series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Features:

  • Low delay time less than 15ms
  • Lightweight, less than 150g
  • Small size
  • 30km LOS distance on air
  • High quality and cost COFDM video transmitter
  • Aluminum-unibody housings featured, good impact resistance and heat dissipation
  • Special design for long range drone uav

15ms latency Long Range 30km Drone Video Transmitter With High Sensitivity -100dbm@4Mhz

Packaging Details:


1* Transmitter;
1* Receiver;
1* Large fiberglass antenna;
3* Omni antenna;
3* RF cables.

4* TTL Cable

2* Ethernet Cables

3* Power Cable

2* HDMI Cables

1* Software

1* Key

1* Package Box

Parameters

Frequency 2.4GHz(2.400-2.482GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1.5Watts
Power Consumption TX: 12Watts/RX: 5Watts
Distance 30km
Bandwidth 4/8Mhz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bitrate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 5db(Omni Antenna) Rx: 10db(Omni Antenna)
Video Color Space Default 4:2:0
Video Compressed Format AVC adds H.265 feature TS stream
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption AES 128
Transmission Mode point to point
Start-up time 25s
Latency 15-30ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL/MAVLINK

Interface

(same interface on TX & RX)

 1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x2
3. S1 TTL bidirectional serial port x2
4. Power Input (DC7-18V) x1
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C
Dimension Tx: 73x48x20mm/ Rx: 72×73×24mm
Weight Tx: 93g, Rx: 148g

Quality 15ms latency Long Range 30km Drone Video Transmitter With High Sensitivity -100dbm@4Mhz for sale
