Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter

  • 1
  • 2

Brand Name : IFLY

Model Number : FIM-1440

Certification : FCC, CE

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200sets/month

Delivery Time : 5-8working days

Packaging Details : 1set/carton

Modulation : DVB-T/DVB-T2/DVB-T2

Video Res : 1080P

Video Input : HDMI

Video Output : HDMI to Monitor and IP to PC

Parameters : Adjustable by software

Rx Antenna : Panel Directional Antenna

RF Power : 2.5Watts

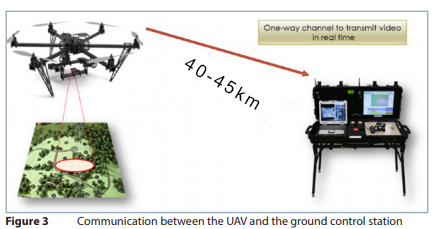

Range : Air to ground 45km, ground to ground 1-2km NLOS

Contact Now

Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter


Description

  • Provide up to 3-5Mbps data stream, dynamic adaptive rate allocation technology
  • Support transparent PTP&PMD network technology
  • Support high-speed mobile transmission
  • Provide standard HDMI + RJ45
  • Support high standard industrial applications
  • Small volume, light weight, easy to carry, fin type aluminum chassis
  • High definition OLED panel digital display, simple interface and easy to operation


Main features:

  • Miniature design at 200 grams
  • Simultaneous Ethernet and Serial Data
  • 2.5W power output
  • Up to 5 Mbps throughput
  • Extended temperature range
  • Delay time very short less than 50ms


Applications:

  • VTOL uav
  • Heavy lift octocopter
  • Heavy fixed wing uav
  • Heavy lift VTOL uav with long endurance
Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter
Parameters
Wireless Channel1.400-1.499Ghz(Adjustable by software)
Communication Bandwidth2/4/8MHZ
RF Transmission Power2.5W
Data Rates1.5/3/6Mbps
RX Sensitivity-103dbm
Interfaces on Transmitter1080P60 HDMI RX×1
Power Input Interface--XT30 Industrial Grade ×1 DC 16-48V
USB 2.0--For linking configure software only.
SMA RF ×1
Interfaces on Receiver1080P60 HDMI Mini TX×1
LCD--Displaying RSSI and link state.
Buttons×5--For configuring receiver model.
Power Input Interface--XT30 Industrial Grade ×1 DC 9-24V
SMA RF ×2
Wireless Fault ToleranceFEC/MPEG
ModulationDVB-T/DVB-T2/DVB-T2
Distance Range

35-60km
Notes: True distance is related to the environment.

Total Latency50ms
Reconnection timeLess than 1s after signal has been recovered
Adjustment of COFDMQPSK one-way
Overall Consumption Power(Maximum)

Transmitter terminal: 25W
Receiver terminal: 12W

Temperature Range

Operating temperature: -40—85℃
Storage temperature: -55 - 125℃

Dimensions

TX: 97mm×57mmx30mm
RX: 91mm×72mmx30mm

RadiatorFancooler or aluminum heat sink
Gram

TX: 200g
RX: 202g
